QUANTUM AIR DRILL

The most advanced air drill from Morris yet. Built for precision, durability, and efficiency, the Quantum Air Drill delivers superior seed placement and unmatched reliability across Australian paddocks.

Download Brochure

Download Brochure

TAKE YOUR OPERATION TO THE NEXT LEVEL

The Quantum Air Drill sets a new benchmark in seeding technology.

Designed for strength and precision, it delivers accurate seed placement, superior trash flow, and unmatched durability—helping Australian farmers maximise yield potential with every pass.

1:1 parallel linkage for exact depth control.

Heavy-duty Duraloc™ frame for superior strength and durability.

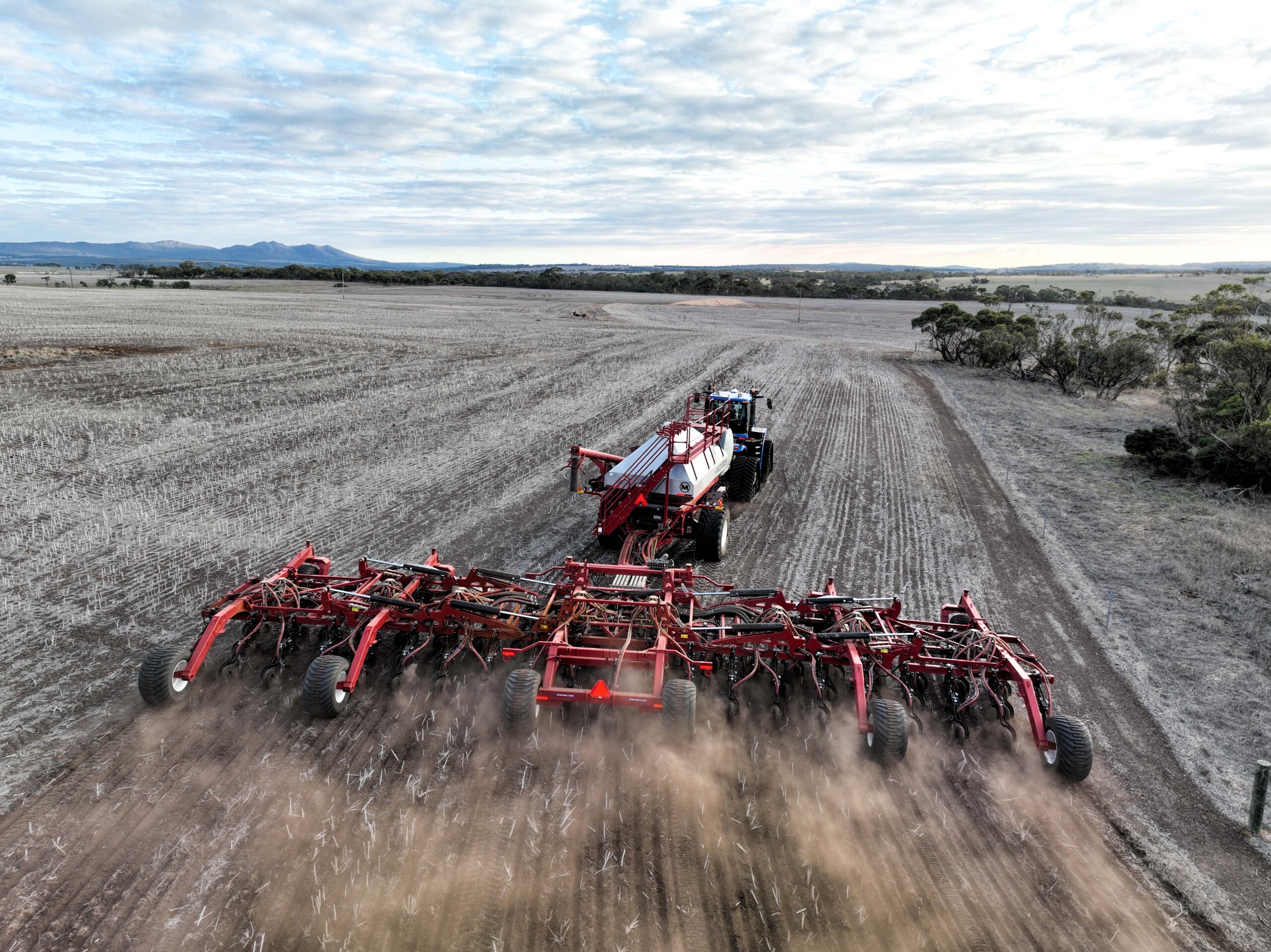

Industry-leading flotation with 15% more tyre contact area.

Greaseable, articulating hitch clevis reducing draft load on front tyres.

Optimised row unit spacing for flexible configurations.

Reclined shank design for improved residue flow.

Stainless steel air system for efficient product delivery.

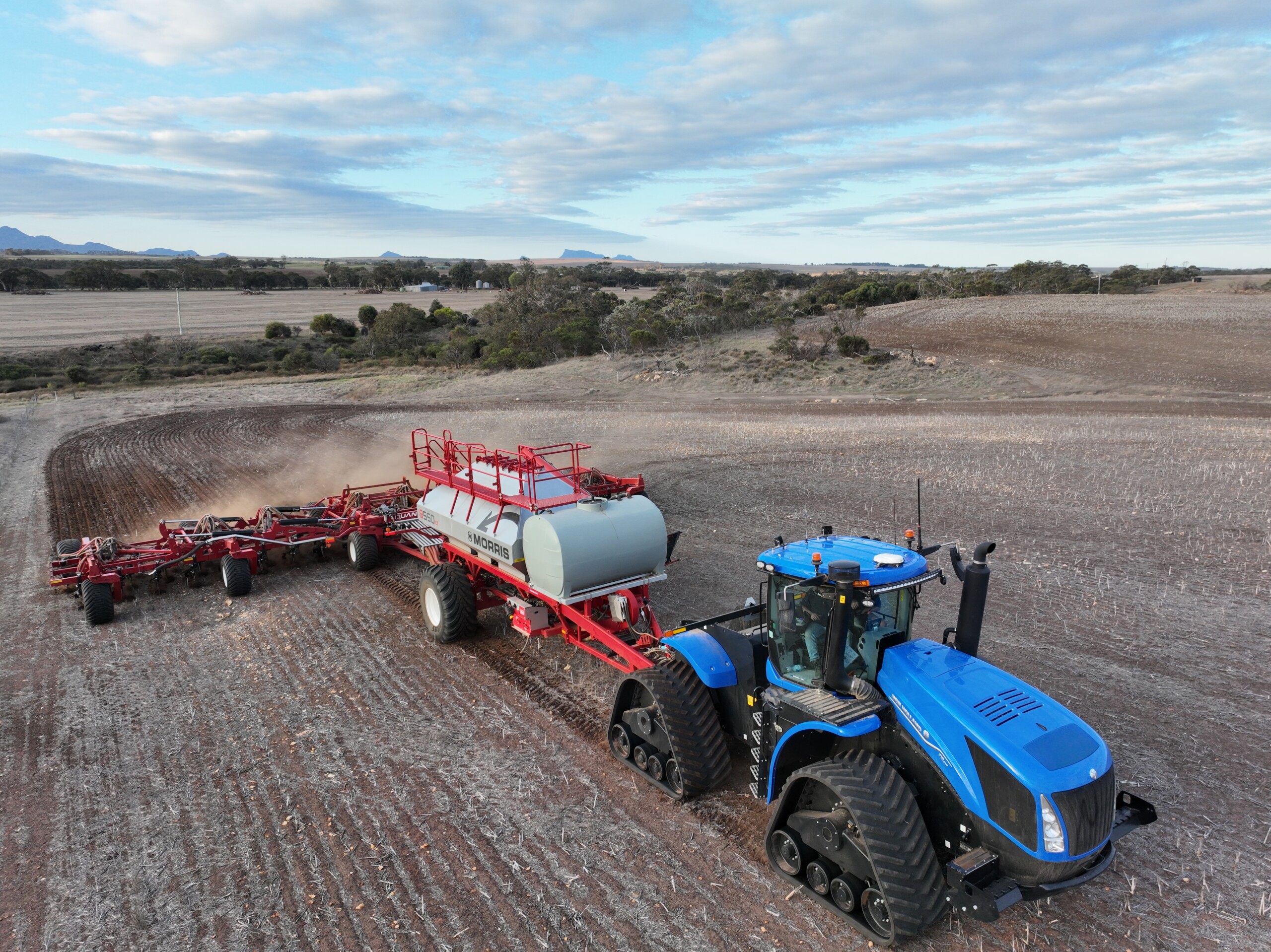

3-metre centres for controlled traffic farming.

Quick-change depth cam system for easy seeding depth adjustments.

Impressive manoeuvrability making tight headland turns a breeze.

QUANTUM
AVAILABLE MODELS

Base Size

Weight - 250mm (10") Spacing - 300mm (12") Spacing - 15" Spacing Working Width - 250mm (10") - 300mm (12") - 15" Number of Shanks - 250mm (10") - 300mm (12") - 15" Frame Width - Main - Wing Inner - Wing Outer - Flip Transport Position - Width - Height - Length Tyres - Main Frame Wheels (Front) - Main Frame Wheels (Rear) - Wing Frame
Front Castor Wheels - Wing Frame
Rear Wheels

12m

12,549 kg (27,665 lb) 11,832 kg (26,085 lb) 11,138 kg (24,555 lb) 12m or (40’) 12m or (40’) 40’ 48 40 32 4.37m (14.35’) 4.15m (13.60’) N/A N/A 5.44m (17’ 10”) 5.13m (16’ 10”) 10.31m (33’ 10”) (4) 600/50-22.5 Single Castor (2)
600/50-22.5 (1 per wing)
(2) 600/50-22.5

15m

14,501 kg (31,970 lb) 13,621 kg (30,030 lb) 12,723 kg (28,050 lb) 15m or (50’) 15m or (50’) 50’ 60 50 40 4.37m (14.35’) 4.15m (13.60’) 1.53m (5.03’) N/A 5.44m (17’ 10”) 5.13m (16’ 10”) 10.31m (33’ 10”) (4) 600/50-22.5 Single Castor (2)
600/50-22.5 (1 per wing)
(2) 600/50-22.5

18m

18,500 kg (40,785 lb) 17,388 kg (38,335 lb) 16,341 kg (36,025 lb) 18m or (60’) 18m or (60’) 60’ 72 60 48 4.37m (14.35’) 4.16m (13.65’) 3.09m (10.15’) N/A 5.44m (17’ 10”) 5.13m (16’ 10”) 10.31m (33’ 10”) (4) 600/50-22.5 Single Castor (4)
600/50-22.5 (1 per wing)
(4) 600/50-22.5

21m

21,065 kg (46,427 lb) 19,758 kg (43,546 lb) 18,542 kg (40,869 lb) 21m or (70’) 21m or (70’) 70’ 84 70 56 4.37m (14.35’) 4.77m (15.65’) 4.01m (13.16’) N/A 5.44m (17’ 10”) 5.82m (19’ 1”) 10.31m (33’ 10”) (2) 600/50-22.5
AGRITERRA (2) 600/50-22.5
AGRITERRA Single Castor (4)
600/50-22.5 (1 per wing)
(4) 600/50-22.5

24m

24,948 kg (55,000 lb) 23,600 kg (52,029 lb) 22,498 kg (49,600 lb) 24m 24m 24m 95 80 63 5.87m (19.25’) 4.22m (13.83’) 3.28m (10.75’) 1.83m (6.00’) 7.62m (25”) 5.59m (18’4”) 10.62m (34’ 10”) (4) Dual Castor
VF 445/50R 22.5
Alliance 167D
Agriflex 381 (2) Fixed Single
650/55R 26.5
AGRITERRA 02 169D Single Castor (4)
600/50-22.5 (1 per wing)
(4) 600/50-22.5

Precision seed placement, every time

MAXIMISE EMERGENCE,
MAXIMISE YIELD.

Consistency is key to higher yields, and the Quantum Air Drill delivers with pinpoint seed placement. Its 1:1 parallel linkage ensures each seed is placed at the exact depth for optimal germination, while Auto-Pack maintains the perfect packing pressure across varying soil conditions.

The result? Even emergence, better root development, and stronger crop performance.
