10 SERIES AIR CART

Designed for Australian farmers facing tight seeding windows, the 10 Series Air Cart delivers the perfect combination of capacity, precision and productivity.
Download Brochure
Radial Gradient
Download Brochure

THERE IS A
SILVER BULLET.

Loaded with Australian customer-inspired ideas and technology, the Morris 10 Series air cart aims to minimise the time spent on seeding and filling operations and to maximise the number of hectares seeded for each tank fill.

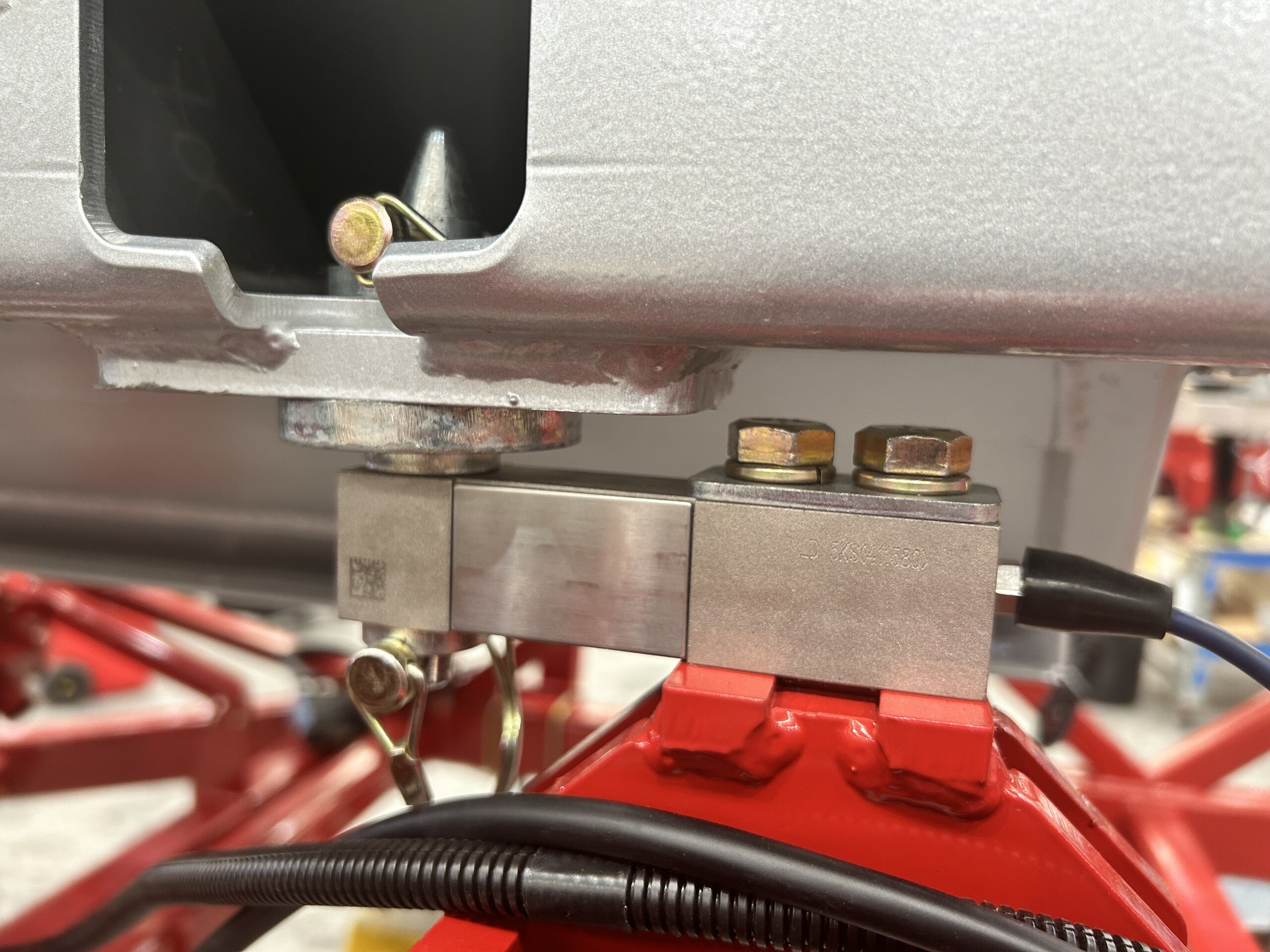

Individual tank load cells for increased accuracy.

Dynamic calibration correction to maximise seeding efficiency and precise product delivery.

Single belt conveyor with a low profile hopper fills for rapid filling.

Electric metering with 24V brushless motors with infinitely adjustable rates.

Enhanced operator visibility with integrated 25,000-lumen lighting system.

Low-maintenance, long-lasting stainless steel components.

Sectional control for accuracy across all field conditions, and capable of varying product rates for up to 10 sections.

Additional Optimizer Tank™ can be used to optimise the hectares per fill when seeding other crops.

Larger tyres to reduce soil compaction and improve flotation.

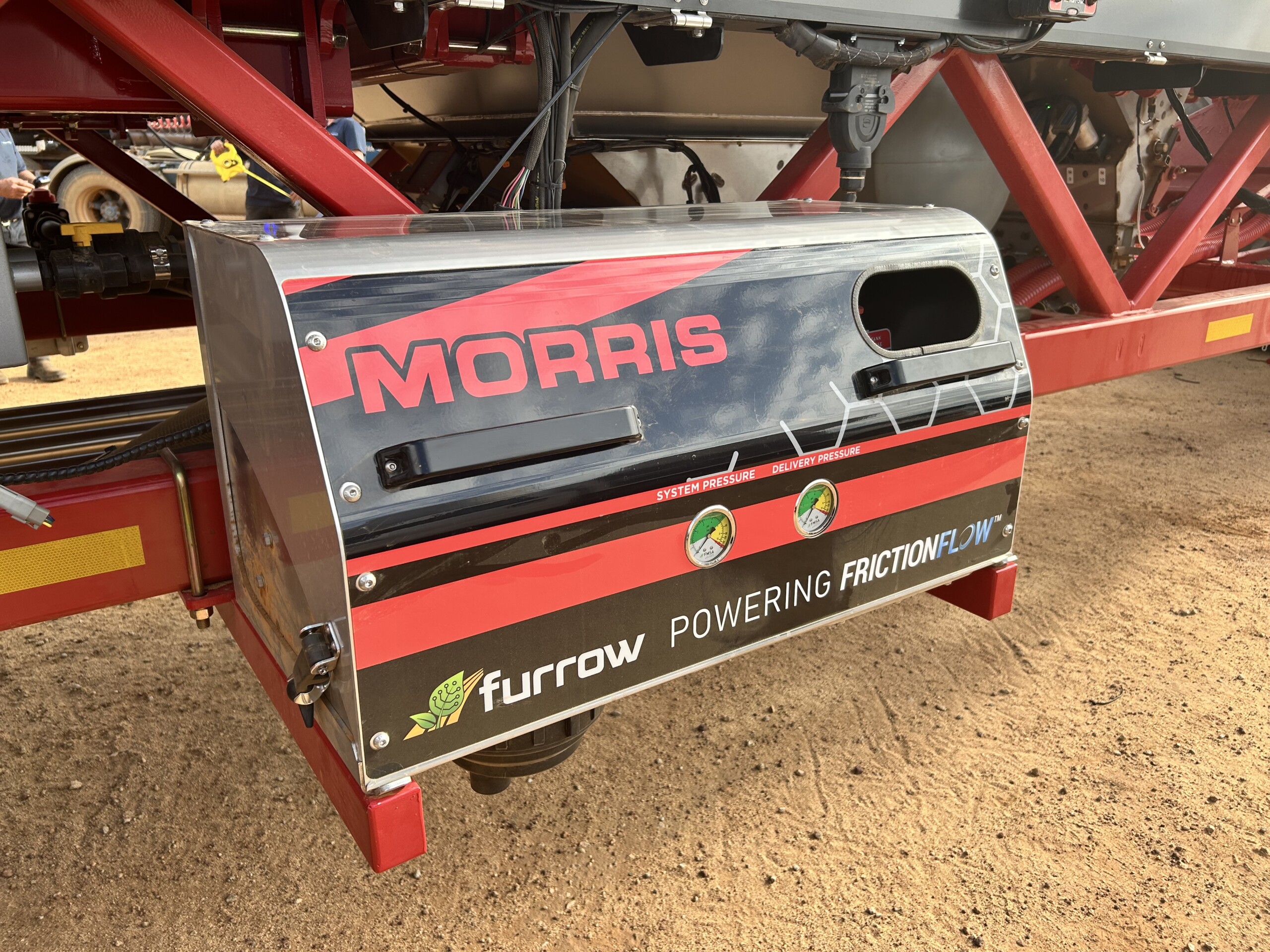

Fully integrated liquid tanks, made from high-grade stainless steel, designed and manufactured in Australia.

Radial Gradient
ELECTRIC-DRIVEN METERING

NEXT GENERATION
SECTIONAL CONTROL.

The 10 Series has a new electric driven metering system with enhanced accuracy for superior product delivery and your lowest rates.

  • SPIRAL FLUTED METERING WHEEL
The spiral fluted metering wheel is a Morris staple – its continuous flow of product into the air stream is the gold-standard in metering accuracy. Rate range: 20-300 kg/ha
  • DUAL SPIRAL FLUTED METERING WHEEL
This metering wheel is used in the Optimizer Tank™ (Small Seeds) and delivers outstanding low-rate flow of product into the air stream. Rate range: 1-50 kg/ha
FIND DEALERSHIP
PRECISION AT EVERY STEP EXPLORE OUR PRECISION
FARMING SOLUTIONS
Frame Size Total Capacity Tank 1 (L) Tank 2 (L) GRANULAR Tank 3 (L) LIQUID Tank 3 (L) Tank 4 (L) Weight (kg) - Tow Behind - Tow Between Height (mm) - Rails Up - Rails Down Wheel Centre (mm)s - Tow Behind - Tow Between Tyres - Tow Behind - Tow Between
10-590G
Regular 20,791 2,114 7,048 4,581 - 7,048 15,325 13,854 4,790 4,390 Front & Rear 3000 4800 Front VF710/70R 42
Rear VF710/70R 42 900/60R 42
OPT 1050/50R 32
10-500L
Large 24,118 - 8,809 - 6,800 8,809 17,840 14,977 4,790 4,390 Front 3,840
Rear 4800 4800 Front 800/70R 38
Rear 1250/50R 32 194A8 SFT 1250/50R 32
194A8 SFT
10-580L
Large 26,937 2,819 8,809 - 6,800 8,809 18,552 15,689 4,790 4,390 Front 3,840
Rear 4800 4800 Front 800/70R 38
Rear 1250/50R 32 194A8 SFT 1250/50R 32
194A8 SFT
10-755G
Large 26,603 2,819 8,809 6,166 - 8,809 18,338 15,236 4,790 4,390 Front 3,840
Rear 4800 4800 Front 800/70R 38
Rear 1250/50R 32 194A8 SFT 1250/50R 32
194A8 SFT
10-660L
X-Large 31,756 - 11,628 - 8,500 11,628 18,751 16,057 4,790 4,390 Front 3,840
Rear 4800 4800 Front 800/70R 38
Rear 1250/50R 32 194A8 SFT 1250/50R 32
201B
10-740L
X-Large 34,575 2,819 11,628 - 8,500 11,628 19,436 16,742 4,790 4,390 Front 3,840
Rear 4800 4800 Front 800/70R 38
Rear 1250/50R 32 194A8 SFT 1250/50R 32
201B
10-970G
X-Large 34,103 2,819 11,628 8,028 - 11,628 18,267 15,573 4,790 4,390 Front 3,840
Rear 4800 4800 Front 800/70R 38
Rear 1250/50R 32 194A8 SFT 1250/50R 32
201B
PRECISION AT EVERY STEP

PRECISION THAT POWERS
PRODUCTIVITY

OPTIONS

Auto-Pack & Auto-Lift

Learn more

OPTIONS

Topcon

Learn more
10 SERIES AIR CARTS SPECIFICATIONS
Fan 58 cm (22") Diameter Impeller (5000 RPM Max)
Hydraulic Fan Motor(s) 9cc (95 l/min) at 3,100 psi (21,374 kPa)
Dual fans require 190 l/min
Aux Power Unit (APU) 6.3cc (28 l/min)
Total Max Hydraulic Requirements 220 l/min (excludes bar and liquid requirements)
Convey-All Conveyor 35’ x 10” Tube x 16” Belt 3,800 l/min (wheat)
Hydraulic Requirement 80 l/min (flow controlled)
Meter Drive 24v Brushless Electric Motors 180w
Primary Air System 10 Run/2.5” Dia Stainless Stee
Meter Rate Range Tank 1: Low 1-50 kg/ha
Tanks 2-4: Standard 20-300 kg/h
Same Side Ajustment of Seed Plates, Tank Shut-offs, Double Shoot Collectors and Quick Access Doors Standard
Number Primary Runs - single / double 6-10 / 12-20
Number Secondary Runs - single / double 35-100 / 70-200
Total pump output 356 L
Hydraulic oil requirements 23 l/min
Product tanks Fully integrated stainless steel
24v Brushless Alternator 150A
24v/12v Equaliser System 24v-150A/12v-40A
Sealed ECU and Battery Modules Standard
Military Grade Harness Connectors Standard
Undertank / Intank / Walkway / Conveyor Lighting 12K Lumens
Tool Bar Lighting 16K Lumens
Display Monitor Topcon XD+ Console
Automated Sectional Control Fully adjustable sectional timing
Variable Rate by Section Automated rate control for each 2-3m section
Weighs Scales Individual granular tanks on load cells
Auto-Lift Automatically lifts/lowers bar on headlands
Auto-Pack Consistent packing & placement throughout paddocks
Xtend This app remotely connects to the Topcon XD+ monitor
Implement-Implement Coverage Shares maps between seeding systems
Topcon Agricultural Platform (TAP) Data management service that simplifies data transfer between the field and the office

INSPIRED BY FARMERS,
ENGINEERED BY MORRIS.
