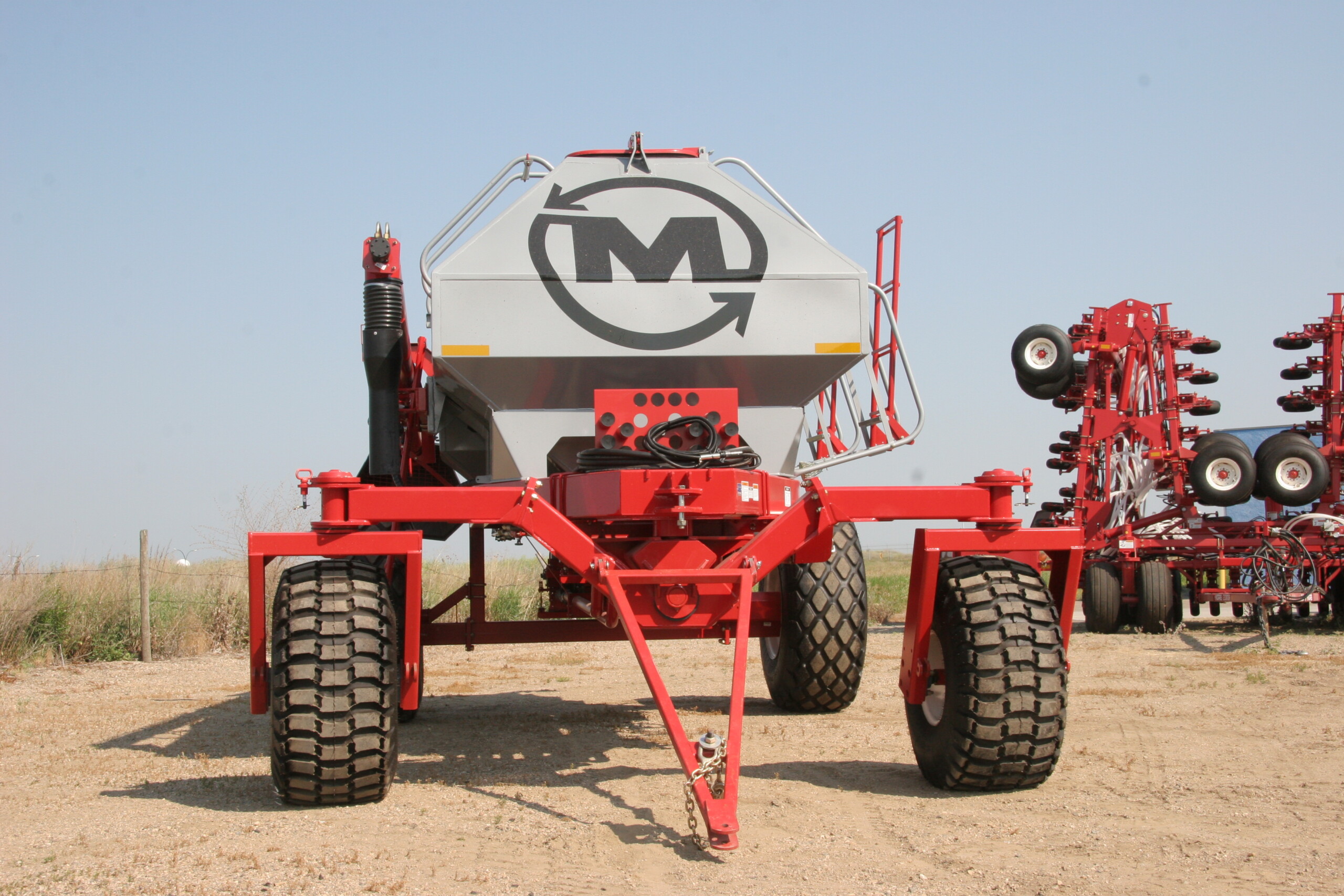

9s SERIES AIR CART

Crafted for precision and endurance, the 9s Series Air Cart is backed by decades of Morris innovation.
Download Brochure
Radial Gradient
Download Brochure

DESIGNED TO
OUTPERFORM

The Morris 9s Series Air Cart is engineered to maximise efficiency in every pass. Featuring advanced metering, flexible configurations, and precision air delivery, this air cart ensures optimal seed placement and minimal downtime.

Spiral-fluted metering wheels for accurate product flow.

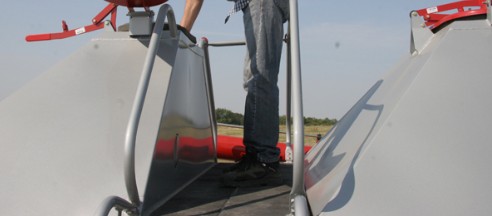

Walk-through tank design for safe and easy access from both sides.

Configurable to 3-metre track widths for controlled traffic farming.

Optional third tank for increased capacity and greater flexibility.

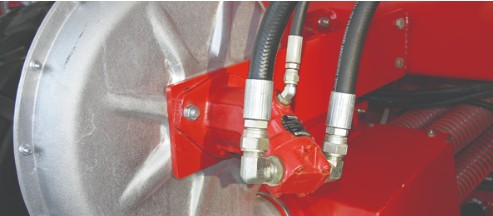

High-efficiency fan for smooth airflow and superior product delivery

Adjustable plenum for optimised air control with heavier products.

Upright stainless steel air kits ensure long life and consistent product delivery.

Mechanical or variable rate drive options to suit your operation’s needs.

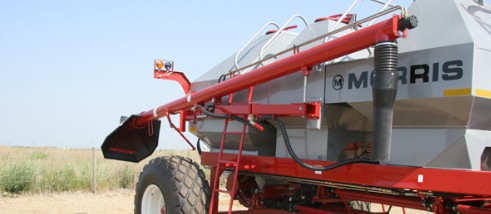

Double-hinged 8-inch auger for balanced, faster filling.

Integrated monitoring system tracks bin levels, fan speed, and ground speed in real time.

Radial Gradient
PRECISION AT EVERY STEP EXPLORE OUR PRECISION
FARMING SOLUTIONS
Configuration Length - with Auger Height Width Weight (Hydraulic Drive) Safety Lights Safety Chain Rear Tow Hitch Tank Capacity - Tank 1 - Tank 2 - Tank 3 - Total
9240s Tow-Behind
Tow-Behind 7.82 m (25' 8") 3.45 m (11' 4") 3.66 m (12') 3,325 kg (7,315 lbs) Standard Standard Optional 95 bu (3,460 l) 145 bu (5,270 l) Optional 40 cu.ft. (1,129 l) 240 bu (8,730 l)
9240s Tow-Between
Tow-Between 8.18m (26' 10") 3.45 m (11' 4") 3.66 m (12') 3,071 kg (6,825 lbs) Standard Standard Standard 95 bu (3,460 l) 145 bu (5,270 l) Optional 40 cu.ft. (1,129 l) 240 bu (8,730 l)
9252s Tow-Behind
Tow-Behind 7.82 m (25' 8") 3.45 m (11' 4") 3.66 m (12') 4,013 kg (8,828 lbs) Standard Standard Optional 71.3 bu (2580 l) 71.3 bu (2580 l) 109 bu (3,970 l) 252 bu (9,130 l)
9252s Tow-Between
Tow-Between 8.18m (26' 10") 3.45 m (11' 4") 3.66 m (12') 3,795 kg (8,348 lbs) Standard Standard Standard 71.3 bu (2580 l) 71.3 bu (2580 l) 109 bu (3,970 l) 252 bu (9,130 l)
9300s Tow-Behind
Tow-Behind 7.82 m (25' 8") 3.66 m (12') 3.66 m (12') 3,479 kg (7,770 lbs) Standard Standard Optional 120 bu (4,360 l) 180 bu (6,550 l) Optional 40 cu.ft. (1,129 l) 300 bu (10,910 l)
9300s Tow-Between
Tow-Between 8.18m (26' 10") 3.66 m (12') 3.66 m (12') 3,296 kg (7,325 lbs) Standard Standard Standard 120 bu (4,360 l) 180 bu (6,550 l) Optional 40 cu.ft. (1,129 l) 300 bu (10,910 l)
Spiral-fluted metering wheel

METERING MADE SIMPLE.

The 9s Series Air Cart is equipped with a spiral-fluted metering wheel – a trusted solution for accurate and consistent product flow used on all Morris air carts. Designed to gently roll seed and fertiliser into the air stream, this system ensures uniform distribution and optimal emergence across a variety of crops.

How the spiral-fluted metering wheel works.

Morris’ unique spiral fluted design gently guides product into the air stream, providing a steady, even flow to ensure uniform seed distribution and optimal emergence. Paired with precision divider heads, this system offers unparalleled accuracy in seeding operations.

Your farm will benefit from:

  • A continuous, even product flow that improves seed placement accuracy and crop emergence.
  • Durable stainless steel collectors that resist corrosion and ensure long-lasting performance.
  • A quick-release metering system for effortless adjustments and reduced downtime.
  • Versatile performance with options for regular or coated meter bodies to handle various seed types.
FIND DEALERSHIP

PRECISION THAT POWERS
PRODUCTIVITY

OPTIONS

Auto-Pack & Auto-Lift

Learn more
10 SERIES AIR CARTS SPECIFICATIONS
Optional
Right Hand Side Standard
13” (33 cm) - Up to 5,000 r.p.m.
(Closed Centre or Closed Centre Load Sensing systems required) Hydraulic requirements for Air Cart only at Rated Fan Speed.
12cc - piston type orbit motor 15.5 U.S. gal./min. (59 l/min) at 2,100 p.s.i. (14,469 kpa) VRT requires an additional 5.5 U.S. gal/min (21 l/min)
Total pump output Standard (20.32 cm Dia x 609.6 cm) (8” Dia x 20 ft)
Standard (Front) (2) 21.5 x 16.1 AWT - 10 ply rating
Distane Center-Center 97 cm (38”)
Optional 3M Axles Center-Center 3 m (118”)
Standard (Rear) (2) 23.1 x 26 AWT - 12 ply rating

Distance Center-Center 307cm (121”)

Optional 3M Axles Center-Center 3 m (118”)
Optional (Front) (2) 21.5 x 16.1 Rice - 12 ply rating
Optional (Rear) (2) 23.1 x 26 Rice - 10 ply rating
Optional
Ground Driven Standard
Variable Rate (VRT) Optional - Topcon Monitor
GPS Compatible VRT Optional - Topcon Monitor
Electric
Single-Shoot 21 to 80
Double-Shoot 42 to 160
Primary Hose 6.4 cm (2 1/2")
Secondary Hose Standard - 2.4 cm (15/16”)
Optional - 2.8 cm (1 1/8”)
10 cm x 20 cm (4” x 8”) tubing
Standard
Second Clutch (For spot fertilising on the go) Optional
Standard (Shaft Motion (3), Bin Level (3), Fan Speed, Acre Tally, Ground Speed)
Optional Seed Flow
Optional
